CSL DD. Now with Motorsport type QR2.

Push the limits using an exceptional Direct Drive Wheel Base in a compact design. Now including QR2, you’ll enjoy even more precision and detailed force feedback.

FANATEC® Direct-Drive technology.

When the steering wheel is directly mounted to the motor shaft, there’s no belt or gear drive to dilute the force feedback effects. Choose Direct Drive by Fanatec and experience your favourite racing simulations as the developers intended.

FANATEC® Direct-Drive technology.

When the steering wheel is directly mounted to the motor shaft, there’s no belt or gear drive to dilute the force feedback effects. Choose Direct Drive by Fanatec and experience your favourite racing simulations as the developers intended.

Maximum strength.

The CSL DD QR2 (8 Nm) package includes the Boost Kit 180, a powerful 180W power supply that unlocks the full performance of the direct drive motor.

8 Nm peak torque.

Using the included Boost Kit 180, the CSL DD operates in its 8 Nm mode. This provides much stronger feedback, and as a result, you’ll feel the subtle cues more clearly too. This high level of torque can be sustained without the need for active cooling, with the extruded and CNC-machined aluminium casing acting as the structural chassis as well as the heatsink.

Motorsport-derived quick release system.

The new QR2 quick release delivers rock-solid performance at the highest level. The shape of the coupling was developed for use in real-world motorsport, originally used in the 2022 BMW M4 GT3 race car.

Everything just clicks.

Steering Wheel attachment has never been easier. Simply bring the wheel towards the base and push to fit – no need to touch the quick release.

Hot-swap.

The carbon fibre-reinforced polyamide construction allows for fast and secure switching of steering wheels. Hot-swap between different wheel designs without needing to restart the sim or your Wheel Base.



Features



  • Direct-Drive system delivers instant, detailed force feedback
  • Boost Kit 180 included
  • Linear, consistent performance (8 Nm peak torque)
  • Patented, exclusive FluxBarrier technology optimises motor efficiency and smoothness
  • Full Fanatec SDK support ensures game compatibility out of the box for all major racing games
  • Standard Tuning Menu allows beginners to get started quickly without having to worry about settings
  • Advanced Tuning Menu allows enthusiasts to fine-tune the force feedback characteristics to suit their driving preferences
  • High-resolution (contactless) Hall-position-sensor, same as Podium Series
  • Steering axis made from carbon fibre-enhanced composite
  • Fanless: wheel base housing is made from aluminium (passive heat sink, core structural component) with composite end caps
  • Rotation: 2520 degrees (electronically limited, adjustable)
  • Slip ring system (life-tested for thousands of hours) provides cable-free delivery of power and data to steering wheels
  • QR2 quick release system
    • Motorsport-derived quick release
    • Tapered shape naturally ensures a tight fit
    • Carbon fibre-reinforced polyamide construction
    • Exchangeable
  • T-nut rail system on sides and bottom for easily adjustable hard-mounting
  • Optional table clamp (sold separately), supports 5 to 60 mm table thickness

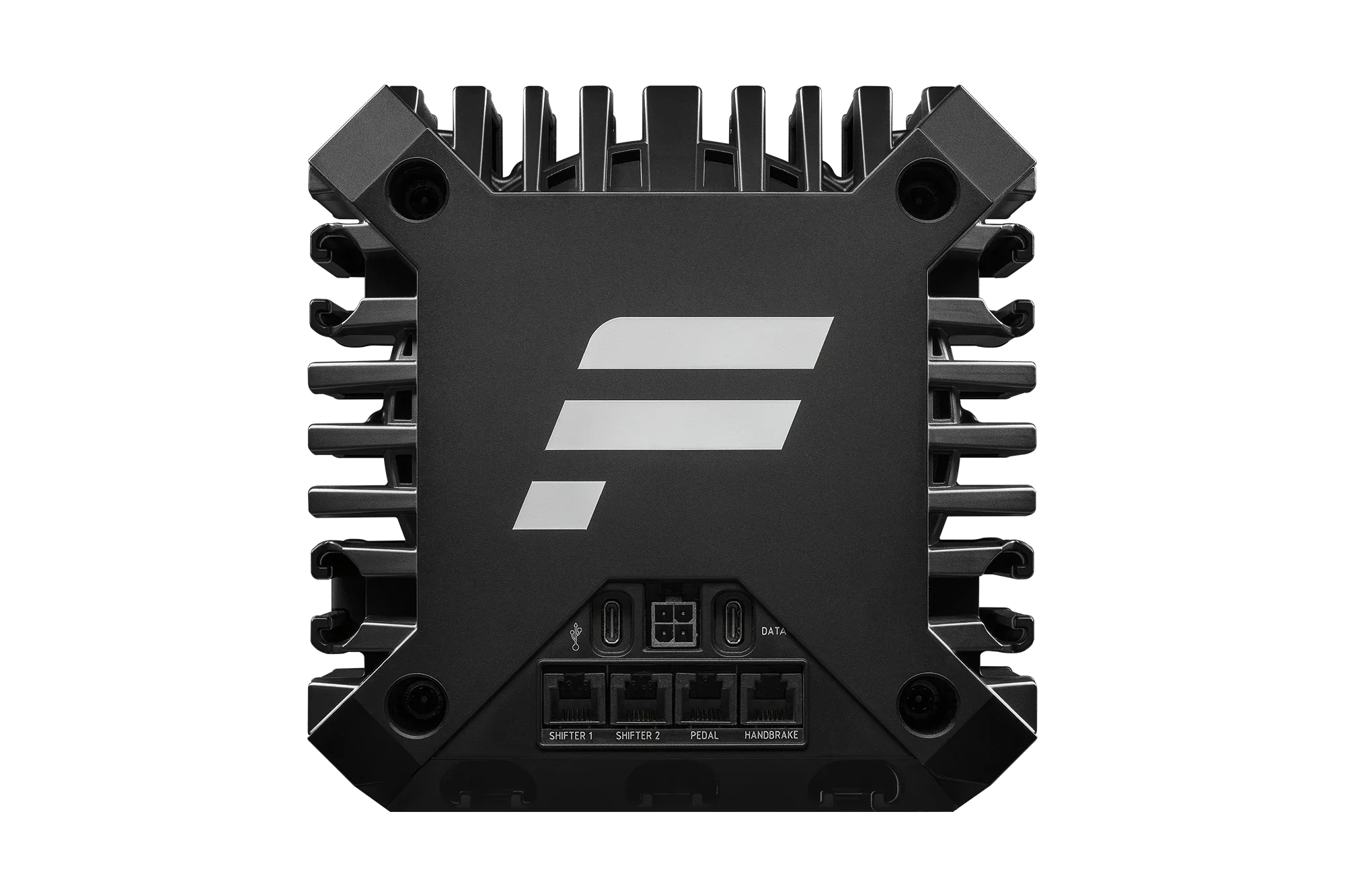

  • Ports:
    • Power supply
    • USB-C to PC / console
    • Fanatec DataPort-C
    • Shifter 1
    • Shifter 2 (Sequential only)
    • Pedal
    • Handbrake
  • Front-mounted threaded inserts for Fanatec accessories (e.g. ClubSport Static Shifter Paddles, available separately). Not intended for front-mounting the wheel base to a sim racing chassis/cockpit.

Compatibility

Peripherals

The CSL DD QR2 Wheel Base is compatible with:

  • All Fanatec Steering Wheels (with QR2 Lite Wheel-Side, QR2 Wheel-Side, or QR2 Pro Wheel-Side)
  • All Fanatec Pedals (adapter cables might be required on pedals without RJ12 connection)
  • ClubSport Shifter (including ClubSport Static Shifter Paddles)
  • ClubSport Handbrake (all versions)
  • All Fanatec Cockpits
  • CSL DD Table Clamp
  • ClubSport DD Table Clamp
  • ClubSport Table Clamp V2
  • Boost Kit 180
  • Podium Mounting Brackets (the CSL DD includes M6 T-nuts for side-mounting; the Podium Mounting Brackets require the use of M6 bolts and washers)

Platforms

  • PC: The CSL DD QR2 Wheel Base is compatible with PC when combined with a Fanatec Steering Wheel. Check the individual Steering Wheel product pages for Wheel Base compatibility.
  • Xbox®: The CSL DD QR2 Wheel Base becomes compatible with Xbox One® and Xbox Series X|S when used with any Fanatec Xbox-licensed Steering Wheel.
  • PlayStation®: The CSL DD QR2 Wheel Base is not compatible with any PlayStation® console and cannot be upgraded to achieve compatibility.
