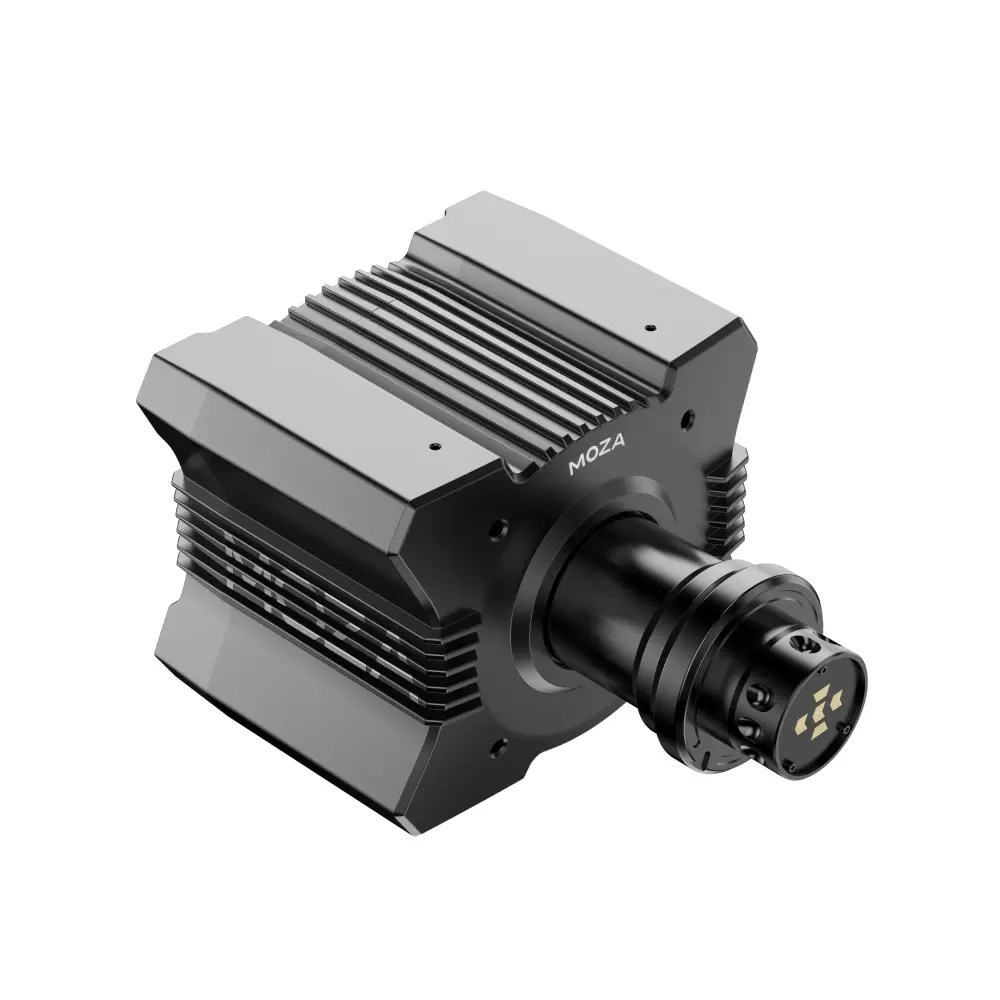

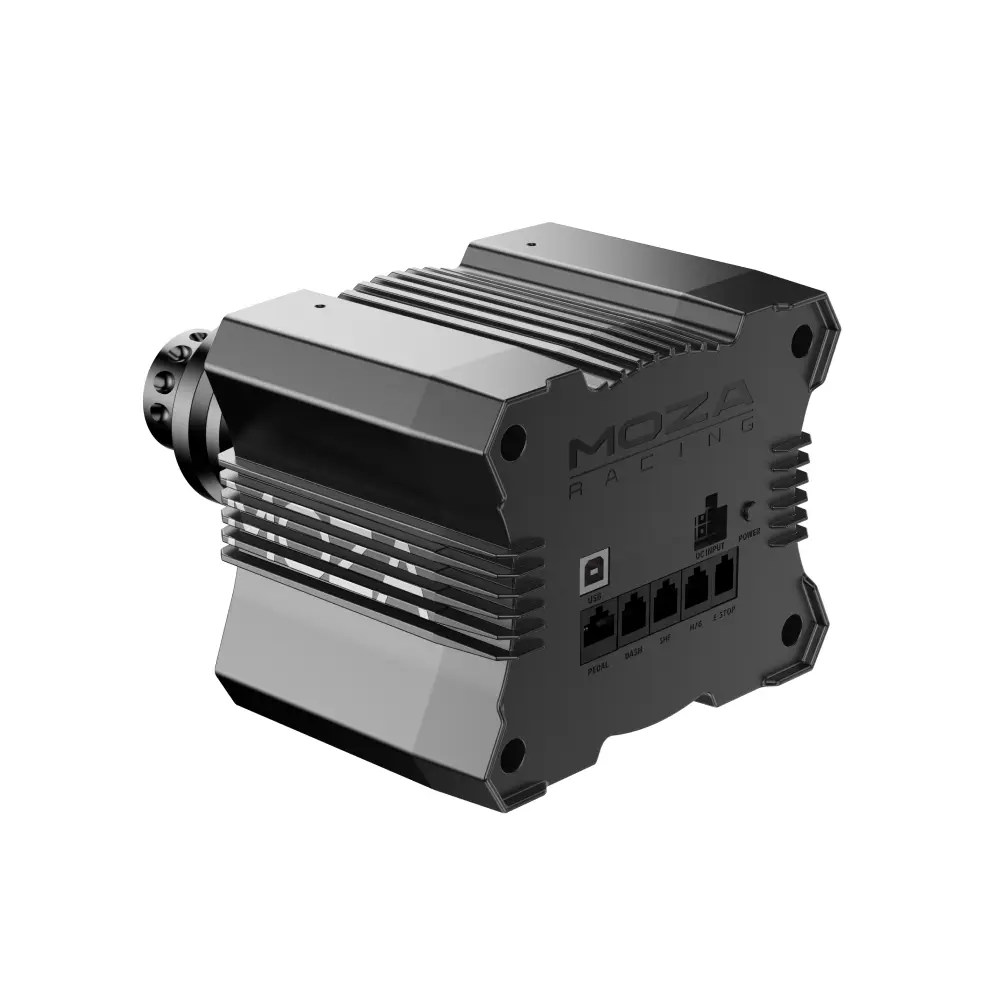

R9 V3 Direct drive wheel base
The R9 v3’s 9Nm of torque can simulate a full range of steering forces and car handling characteristics
NexGen 4.0 Force Feedback Algorithm
21-Bit Magnetic Encoder
With 280MHz High-Performance Processor
Divides each full rotation into 2,097,152 precise steps
Delivers microscopic 0.00017° resolution
Enables ultra-smooth control feel and instant response
Reproduces exceptionally detailed force feedback
MOZA High-Performance Servo Motor
High Torque Density
Optimized slot-fill copper windings
High-permeability silicon steel core
NdFeB permanent magnets for maximum output
18-Slot/16-Pole Configuration
Multi-slot/pole design minimizes torque ripple
Enhanced damping for smoother feedback
Delivers precise and detailed steering response
Wide Torque Range
Low back-EMF design
Maintains consistent torque at high RPM
Eliminates abrupt torque drop-off
Smart Temperature Control System
Our advanced system continuously monitors the temperature of the motor and electronic components and employs intelligent temperature control strategies to deliver stable and reliable performance in all circumstances.
Aviation Grade Aluminum Alloy Housing
Unmatched quality and durability. The MOZA R9’s whole housing is made of aviation grade aluminum alloy.
Industrial Conductive Slip Ring
The base and the steering wheel are connected through a automotive-grade conductive slip ring with a life span of over 5 million revolutions.
The unique patented design has extremely high stability and durability while achieving infinite high-speed rotation.
Now with SimCave Front Mounting option
Quad core architecture
No matter how complex the force feedback calculations get. The unique Quad CPUs can reliably process the task at maximum precision.
App cloud control
The settings of the wheel base, steering wheel, pedals, etc. can be modified through the MOZA APP. Settings can be imported with one click onto new simulators.
The MOZA Pit House control center allows a racer to check the status of a device, adjust settings, and load presets.
The driving modes such as GT, performance car, formula, rally, drifting, and karting are custom designed for racers.
Simulate different driving experiences.
MOZA Pit House
R9 V3 wheelbase specification
- Platform: PC
- Driving type: Direct Drive
- Maximum Steering Angle: Limitless
- Housing Material: Aviation Grade Aluminum Alloy
- Color: Black
- Peak Torque: 9 N·m
- Peak Power: 180W
- Input voltage: 110V~220V AC —>36V DC
- Encoder Resolution: 21 Bits
- USB Refresh Rate: 1000Hz
- Wheel Base Indicator Light: Applicable
- Smartphone APP: Applicable
- Quick Release: Customized Quick Release

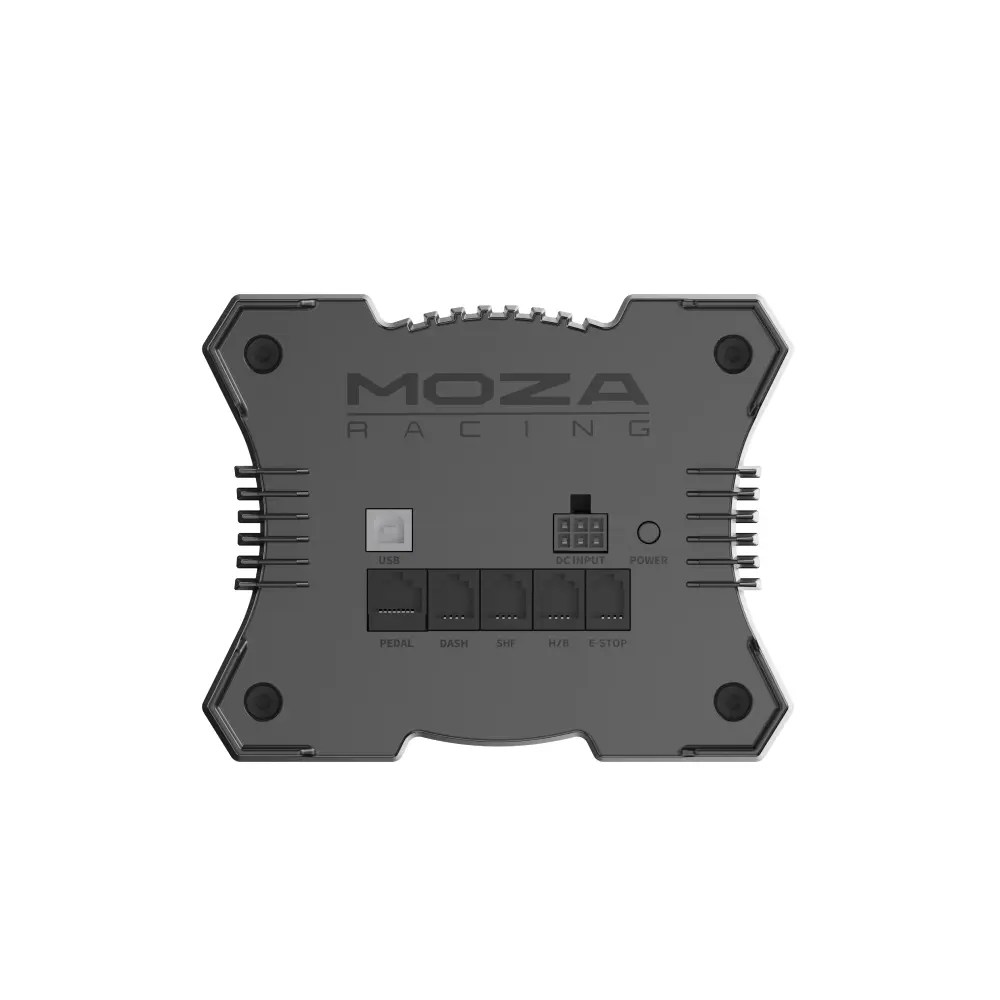

- Connection Port: Starting Switch, Power Supply, Data, Emergency Stop Switch, Display Screen
- Accessories: User manual, Warranty card, Power supply, USB cable, Toolkit
- Mounting: 4 holes in the front for use with Front mounting brackets. 4 holes on the bottom.
- Table Clamp: Optional
- Side Mounting: Optional
- Emergency Stop Switch: Optional
- Firmware Updating: Applicable
- Size (L x W x H)（mm): 240x157x124
