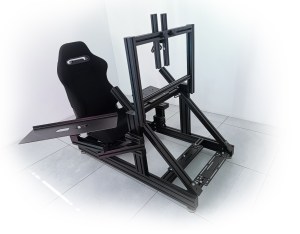

APEX Aluminium Sim Rig Frame

Note: Below Video indicates potential packaging build with options.

this product is the Aluminium Frame only. You can configure your customized Apex Aliminium Rig here.

See other Pre-Built options here

The APEX SimulatorCockpit strikes the perfect balance between Quality, Fidelity, Comfort and Price.

• Wheel mounting is adjustable for Height, Reach and steering angle with advanced machined aluminum system ( Depending on Wheel Mount Options)
• Fit your own seat to the 318mm Mounting frame or select one of our high quality seats.
• Triangulated design with 90×45 and 45mm profiled frame perfect for 12nm systems
• M12 Bolt Internally connected frame for improved rigidity and space utilization. (Note the lack of mounting brackets). Yes, it complicates production, but ensures a stronger, neater design  … and it’s easier to get in- and out off!
• Seating position and ergonomics painstakingly copied from a Porsche 911 for the best possible ergonomics out of the box – without a fuss!
• Pedal mount with easy-adjust hand nut system is Hinged to allow for easy access to cables and setup changes.
• Supplied with Slide feet to adjust for uneven floor while improving movability on carpets and tiles.
• Standard Powder Coated surfaces for a high-quality look, feel and finish.
• Clever cable management system included.

Options:

• Optional VESA TV/Monitor mount adjusts in seconds for reach and height. This is especially helpful to get the screen as close as possible while adjusting for Formula- or Round-rimed wheels. Works seamlessly with all VESA Flat or Curved screens 17″ to 70″ (Samsung, Dell, LG etc.)
• Side-mount system for GT DD Pro and CSL DD is mounted lower and torque is channeled more effectively through the wheel to your hands. It also allows the screen to be mounted lower without affecting space around the knees and seating position.
• Optional Three screen mount is a simple add-on to Optional VESA frame.

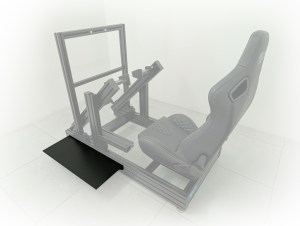

• Console and Computer Stand
• Hinged Mouse and Keyboard stand
• Shifter mount adjustable for height and reach while allowing you ease access from either side of the SimulatorCockpit

Dimensions: L1300 x W690x H1006 (minimum seat position/setting)

Weight 28-38KG depending on options (without steering wheel, base, pedals and screen).

Suitable for persons 1.4 to 2.05 meter tall

Max usage weight 150kg
