4.2 Nm Torque 90 N Push-Pull Force

Experience true force feedback with 4.2 Nm of roll torque, 90 N (9 kg / 20 lb) of push-pull force, delivering highly realistic control forces and precise aircraft response.

180° Full Roll Rotation

Offers a full 180° roll range (±90°), matching the natural control movement found in real aircraft yokes for smooth and precise handling.

95 mm Pitch Travel

The extended travel allows for smoother, more precise pitch control, delivering the accuracy and realism demanded by professional flight simulation.

Construction

Built with a durable high-strength composite housing that combines exceptional rigidity with a compact, lightweight design, making it ideal for both desktop and dedicated cockpit installations.

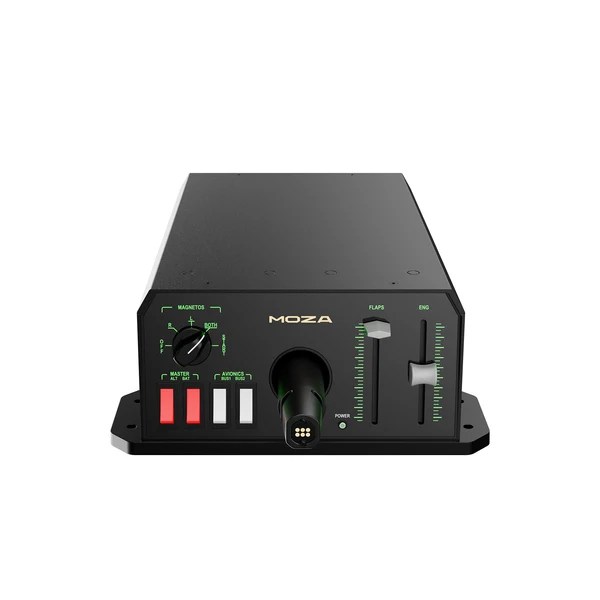

Multi-Function Control Panel

The integrated front panel features 1 multi-position rotary knobs, 4 rocker switches, and 2 sliders inspired by classic general aviation cockpits. Every control is fully programmable through MOZA Cockpit for maximum flexibility.

Aluminum Alloy Quick-Release

Precision-machined aluminum alloy quick-release mechanism enables fast, tool-free yoke changes while maintaining exceptional rigidity and a secure, play-free connection during demanding flight maneuvers.

Custom RGB Lighting

Personalize your setup with 16.7 million-color RGB lighting. Display real-time telemetry such as engine RPM, throttle position, and other simulator data, or customize the lighting to match your cockpit.

15-Bit High-Precision Encoder

Equipped with a high-resolution 15-bit magnetic encoder, delivering exceptionally accurate position tracking and smooth, realistic control inputs.

Flexible Mounting Options

Supports both desktop clamp mounting and aluminum profile cockpit installation with standard 80/20-compatible mounting patterns, making integration into virtually any cockpit straightforward.

Full Software Integration

Configure every button, switch, knob, axis, and lighting effect through MOZA Cockpit with intuitive setup and powerful customization options.

Third-Party Accessory Expansion

Dedicated mounting points on the top of the base support custom gauges, displays, and other accessories. Expand your cockpit further with adapters available through 3D printing or third-party manufacturers.

Extreme Durability

From frame load and torsion tests to electronic endurance testing, the system has endured millions of rigorous cycles without failure—ensuring lasting reliability and consistent performance.

Broad Simulator Compatibility

  • Microsoft Flight Simulator 2024
  • Microsoft Flight Simulator 2020
  • Microsoft Flight Simulator X – PC
  • War Thunder – PC
  • DCS World 2.9
  • Star Citizen
  • IL-2 Sturmovik: Great Battles
  • X-Plane 11
  • X-Plane 12

Specifications

  • Dimensions: 325 x 252 x 111 mm
  • Housing Material: Carbon Fiber Reinforced Composite
  • Quick-Release Material: Aluminum Alloy
  • Button Cap Material: ABS
  • Weight: 4.5 kg
  • Roll Axis Travel: ±90°
  • 5-Way Hat Switch: 1
  • Rocker Switches: 4
  • Slider Switches: 2
  • Power Input: 12V 6A
  • Torque: Roll axis: 4.2 Nm | Pitch axis push-pull: 90 N
  • Motor Encoder: 15-bit magnetic encoder
  • Accessories: Power adapter, USB cable, User manual, Sticker
