Better than ever.

The popular pedal set returns with an overhauled load cell brake, Hall sensors on throttle and clutch, and many refinements to the design.

MAGNETIC SENSORS.







Both the throttle and brake axes use precision Hall-effect sensors. By measuring pedal position with magnets, the system is contactless, meaning no wear on the sensors and consistent performance.

SOLID, FULL-METAL DESIGN.

The pedal arms, faces, and heel rest are made from cast and machined aluminium, with a durable powder-coated finish. Additional bracing towards the rear of the assembly provides extra stiffness and stability under heavy load.

Brake with confidence.

The brake pedal has been completely reworked, with an all-new custom load cell sensor.

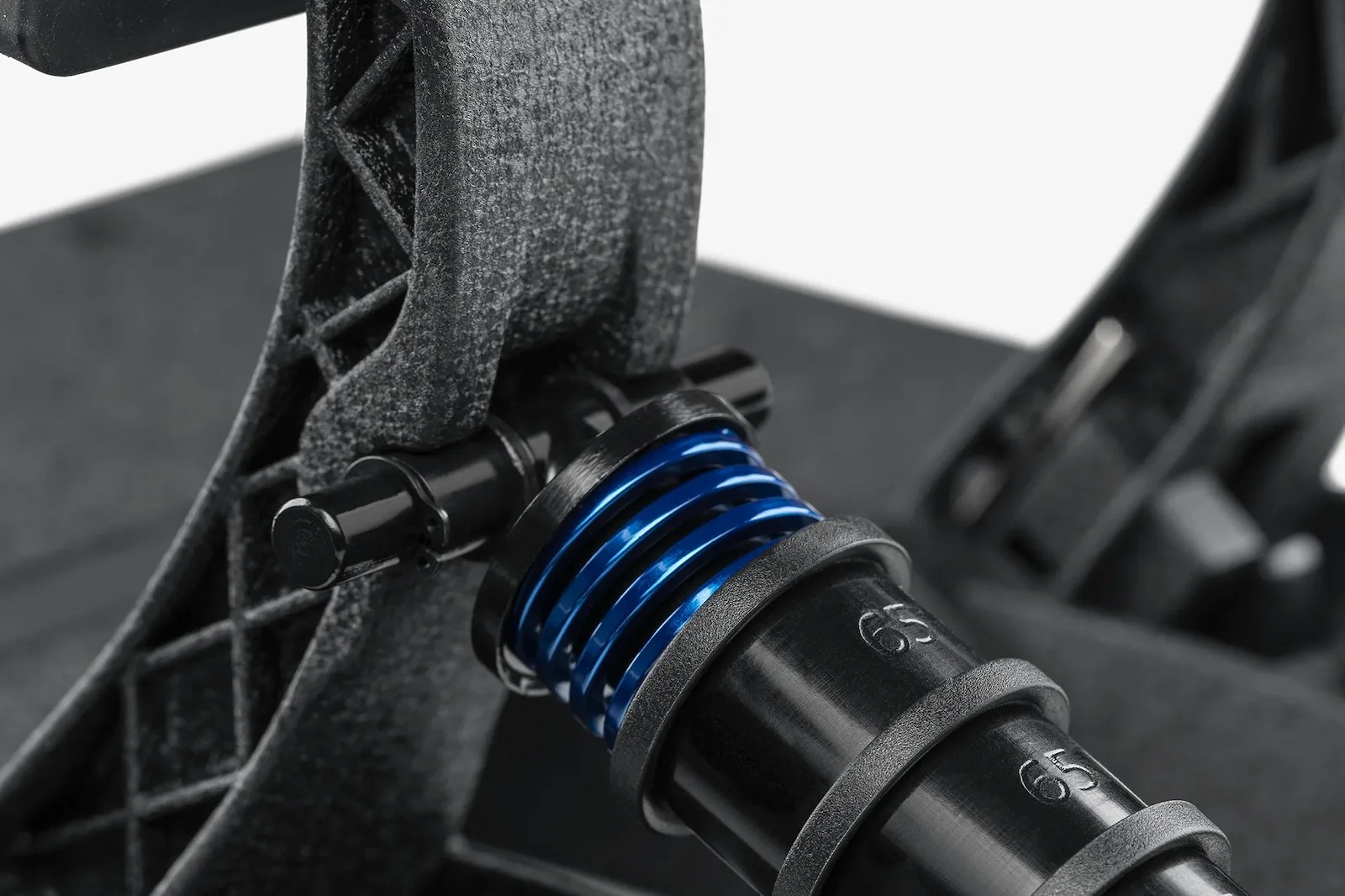

Dual stage brake action

The adjustable, tool-free elastomer stack incorporates a coil spring to simulate the initial movement of the brake pad to the disc. You can easily adjust the firmness of the pedal travel by selecting between elastomer springs (included).













Drive your way.

CSL Elite Pedals V2 connect directly to any supported FANATEC® Wheel Base via the included RJ12 cable. Alternatively, they can be used as a standalone USB device (on PC) using the included USB cable. Pedal position can be adjusted sideways along the heel rest, and it is easily configurable as a two-pedal set.

ELECTRONICALLY ADJUSTABLE.

The amount of braking force required can be easily tweaked through the Fanatec Tuning Menu (or Fanatec Control Panel on PC)*. Manual calibration of all three pedal axes is also possible.
Specifications:
  • High-performance three-pedal set (clutch, brake, throttle)
  • Contactless Hall sensors on both clutch and throttle for high precision and durability
  • All-new load cell brake system
    • Up to 90 kg measured foot force on pedal plate (load cell sensor rated >200 kg)
    • Load cell sensitivity (approx. 10 kg minimum) adjustable via Tuning Menu (or Fanatec Control Panel on PC)*
    • Elastomer stack combined with load cell sensor creates a realistic braking feel
    • Elastomer springs with 65, 75, and 85 Shore hardness included (tool-free adjustment)
    • ‘Dual-stage’ preload feeling with metal spring and elastomer
    • Alternative metal spring also included for stiffer preload
  • Pedal arms, faces, and heel rest made from cast and machined aluminium with durable power-coated finish
  • Fully assembled out of the box, plug and play
  • Easily configurable as a two-pedal set
  • Pedal position can be adjusted sideways along heel rest
  • Pedals can be individually mounted without heel rest, inverted mounting possible (hardware not included)
  • Detachable rubber pedal covers
  • Revised structure on all pedals for greater durability
  • Improved access to hard-mounting points
  • Dedicated handbrake port
  • RJ12 or USB connection
    • Connect directly to all compatible Fanatec Wheel Bases via RJ12 (recommended)
    • Use as a standalone USB input device (PC only)
