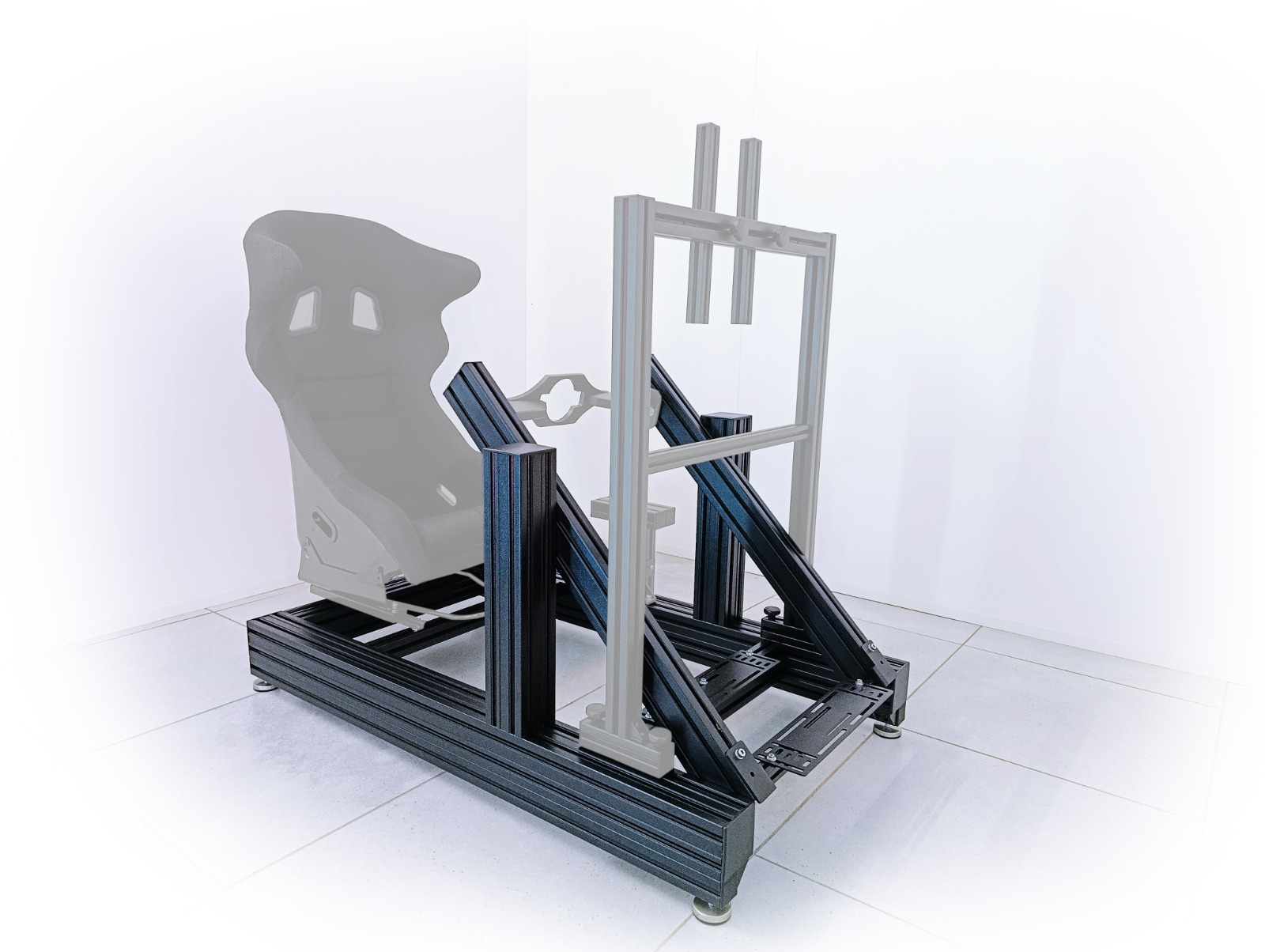

Over-engineered 135×90 heavy profiled Main Frame



Keep in mind the industry standard is 80×40 profile, then 135×90 high density Aluminium profile used here, you will understand why we say ‘over engineered’. Why? Because you can feel the difference when you use a high torque (20nm plus) Direct Drive wheelbase as none of the detail is dissolved into the frame.  Furthermore, with M12 Bolt Internally connected sections for even more rigidity and space utilization. (Note the lack of mounting brackets). This ensures a stronger, cleaner design with more space.

Various Base Mount options available

All wheelbase mounting brackets are adjustable for Reach, Tilt and Height to ensure you can fine-tune the ergonomics to fit you like a glove.

High End materials.

Fully adjustable Machined Aluminum Side Mount system makes a world of difference to ensure all the detail is transmitted to your hands with no detail losses. The same effort was made to get the most form your wheelbase in the form of Front Mount for Simucube and Simagic, SideMount for Moza and Machined aluminum base mounts to fit all main line bases.

Specs in detail

• With a 135×90 Heavy spec aluminium main chassis.
• Weight 28-48KG depending on options (without steering wheel, base, pedals and screen).
• Suitable for persons 1.4 to 1.95 meter tall (add a Seat Adjustability kit to accommodate smaller individuals).
• Dimensions: L1300 x W690x H1206.
• Generous 600mm inside width provides comfortable SUV-like leg room and comfort.
• Geometry taken directly from a Porsche GT car – for the best possible ergonomics out of the box – without a fuss!
• M12 Bolt Internally connected frame for improved rigidity and space utilization. (Note the lack of mounting brackets). Yes, it complicates production, but ensures a stronger, neater design and it’s easier to get in- & out off.
• Hinged and Hard Mount pedal brackets accommodate all pedal designs.
• Supplied with Slide feet to adjust for uneven floor while improving movability on carpets and tiles.
• Standard Powder Coated surfaces for a high-quality look, feel and finish.
• Max usage weight 150kg
• Cable management system included.

Lots of Upgrade Options:



VESA Screen Mount for 18-43″ Screens

VESA Screen Mount PLUS for 18-65″ Screens

Triple Screen Expansion Brackets for 18″- 50″ Screens

Hinged mouse keyboard stand

Fully adjustable Aluminum Mouse and Keyboard stand. Get the comfort you need at your fingertips.



Console & Computer stand



With this all-Aluminium PC and Console stand, there is no need to have your PC or Console on a separate table – or worse, on the ground next to your cockpit. Everything can fit on your Cockpit – just provide the power cable.

Simulator Platform

Place your Simulator on a Neat & Sturdy Carpeted platform. It not only looks great, but it lifts the simulator just enough for easier entry while creating a real sense of occasion every time you go racing.

Castor wheels (We are not a big fan of wheels as it effects stability and limits leveling the rig on uneven floors, but we can add it if you need it)
