This bundle includes:

1. Ultimate Aluminium Frame.

2. Track Racer-S Fibre Glass Bucket Seat (Exchangeable to any other seat in our range).

3. Aluminium Mounting bracket of your choice

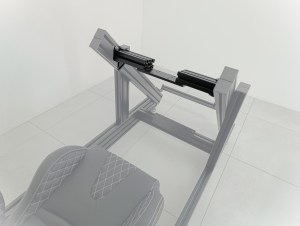

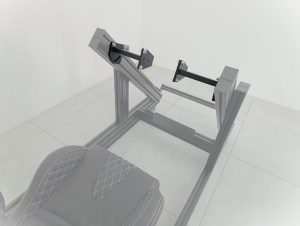

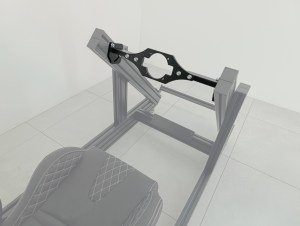

   (Fanatec side-mount/Moza Side-Mount/Simucube or Simagic Front-Mount/Machined aluminum Base-Mount etc.)

4. VESA Screen Mount PLUS for 18-65″ Screens

5. Ultimate Keyboard & Mouse stand

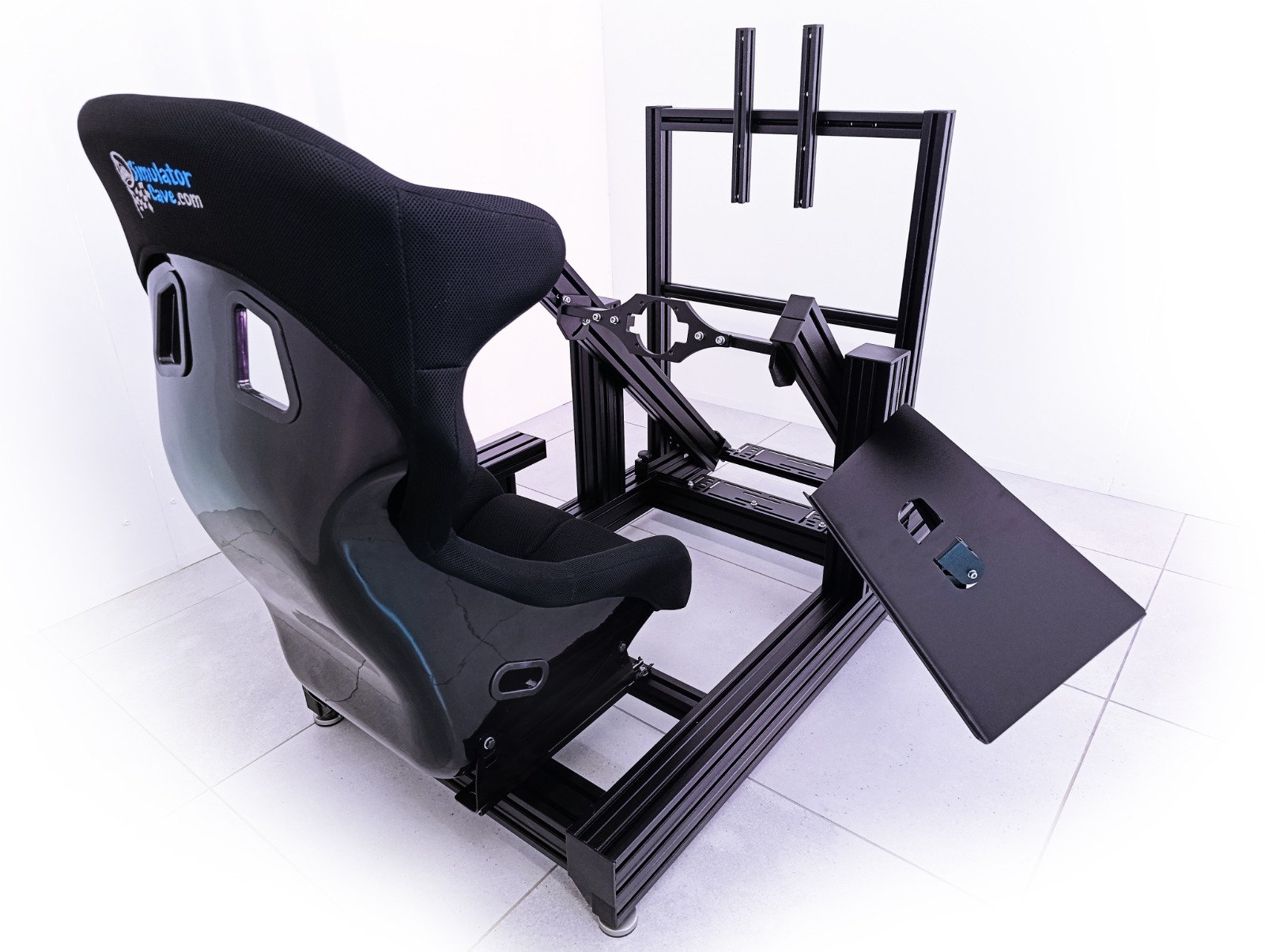

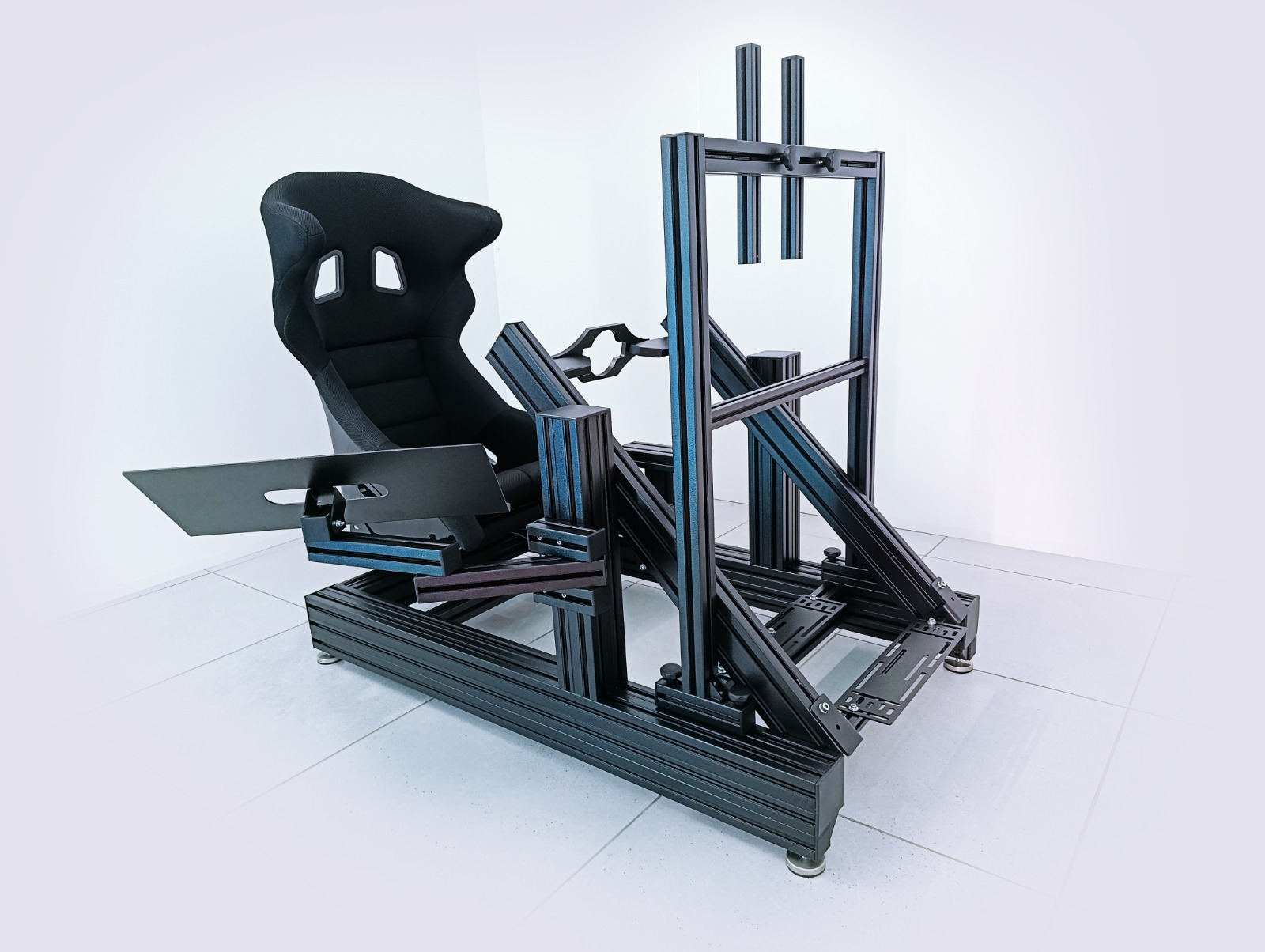

Meet the Ultimate in Sim Racing Rigs

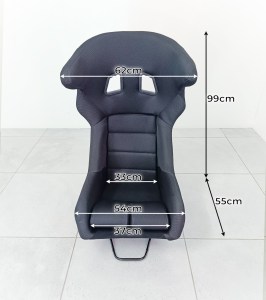

Track Racer-S Fibre Glass Bucket Seat

For the Real track or the Online track – it’s Race Car solid and Hyper Immersive! The Track Racer S Fiberglass Bucket Seat with Breathable Mesh Fabric provides authentic race car look and feel with a comfortable seating position. Adjustable reach with double lock seat sliders and Tilt adjustment with the included steel brackets. Breathable Mesh fabric ensures you stay cool for hours behind the wheel.

Key Features

• Race car derived Glass Fiber Tub
• Breathable Mesh Fabric
• Removable Fabric shell for ease of cleaning.
• 5-Point Racing harness ready (2 x Seat belt holes in backrest, 2 x holes in the side sections and 1 x hole in bottom of seat)
• Tilt adjustment with supplied steel Bracket
• Reach adjustment with Double Lock Seat Slider
• For use in Race cars, Cars and Sim rigs

Dimensions: Maximum 36 Waist size

Various Base Mount options available

All wheelbase mounting brackets are adjustable for Reach, Tilt and Height to ensure you can fine-tune the ergonomics to fit you like a glove.

Specs in detail

• With a 135×90 Heavy spec aluminium main chassis
• Weight 28-48KG depending on options (without steering wheel, base, pedals and screen).
• Suitable for persons 1.4 to 1.95 meter tall (add a Seat Adjustability kit to accommodate smaller individuals).
• Dimensions: L1300 x W690x H1206 (minimum seat position/setting)
• All Wheel mountings are Tilt, Height and Reach adjustable with our novel adjustment system.
• Generous 600mm inside width provides comfortable SUV-like leg room and comfort.
• Geometry taken directly from a Porsche GT car – for the best possible ergonomics out of the box – without a fuss!
• M12 Bolt Internally connected frame for improved rigidity and space utilization. (Note the lack of mounting brackets). Yes, it complicates production, but ensures a stronger, neater design and it’s easier to get in- & out off.
• Hinged and Hard Mount pedal brackets accommodate all pedal designs.
• Supplied with Slide feet to adjust for uneven floor while improving movability on carpets and tiles.
• Standard Powder Coated surfaces for a high-quality look, feel and finish.
• Max usage weight 150kg
• Cable management system included.

Optional Extras:

Console & Computer stand

With this all-Aluminium PC and Console stand, there is no need to have your PC or Console on a separate table – or worse, on the ground next to your cockpit. Everything can fit on your Cockpit – just provide the power cable.

Shifter Bracket

Triple Screen Expansion Brackets for 18″- 50″ Screens

Simulator Platform

Place your Simulator on a Neat & Sturdy Carpeted platform. It not only looks great, but it lifts the simulator just enough for easier entry while creating a real sense of occasion every time you go racing.

Castor wheels

(We are not a big fan of wheels as it effects stability and limits leveling the rig on uneven floors, but we can add it if you need it)



NOTE: If unit is on pre-order, allow for 4-5 business days to shipping/collection for manufacturing and powder coating to be completed.

Note: The video and pics are for illustration purposes. The Cockpit does not include steering wheel, pedals, base, shifter and TV.
